Mobile Jaw Crusher Plant

Mobile jaw crusher is new type stone crushing equipment. It integrates feeder, stone crusher, screening equipment to effectively solve site infrastructure. Mobile crusher plant is widely used in building, road and bridge construction, urban construction.

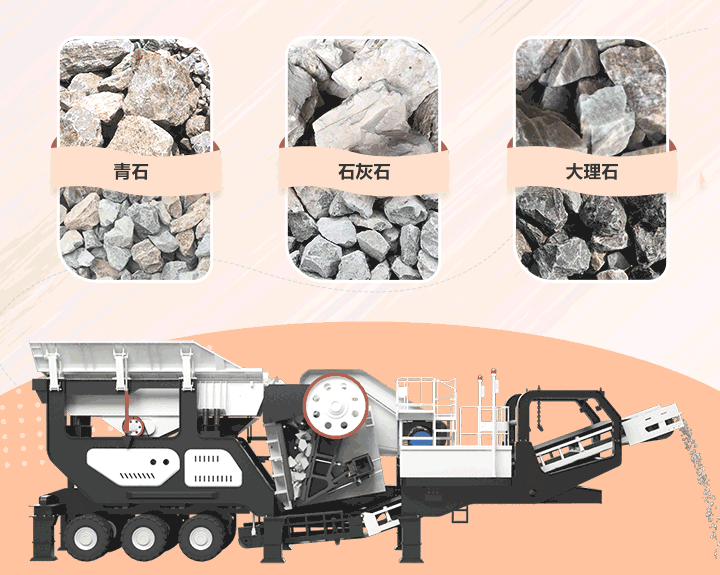

Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

10-450 t/hCapacity 30-150 kwMotor Power

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

01Product Features

HGM series of three-rings and medium-speed micro powder grinder is a new type of making micro powder machines through more than twenties times research and improvement

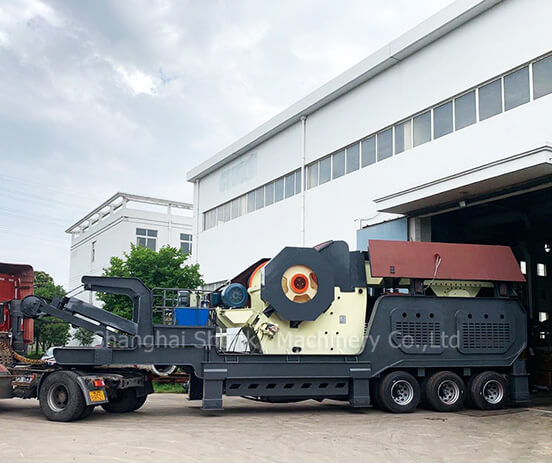

Mobile Jaw Crusher Plant

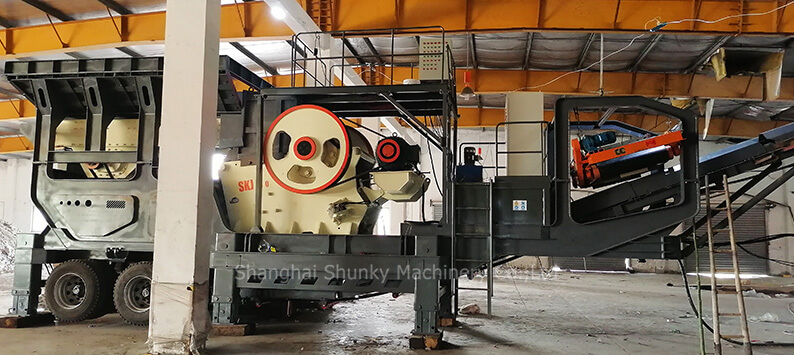

Mobile Jaw Crusher Plant

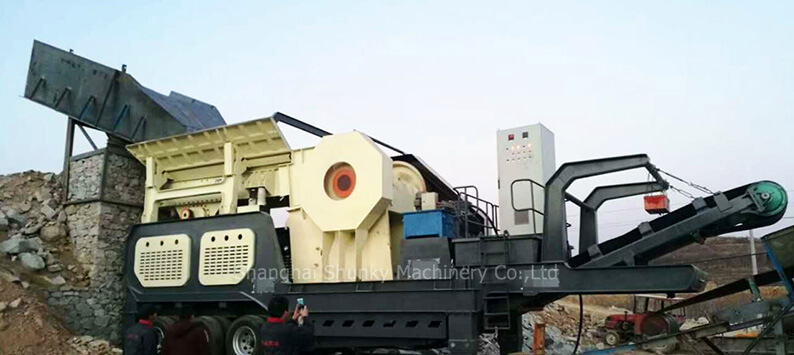

Mobile Jaw Crusher Plant


02Product Features

  • PE Series high-performance crusher.

  • Car feeder, vibrating screen, belt conveyor

  • Pulling the steering shaft, to facilitate road transport.

  • Vehicle installation support, on-site installation quick and easy.

  • Supporting the installation of the motor and control box integration.

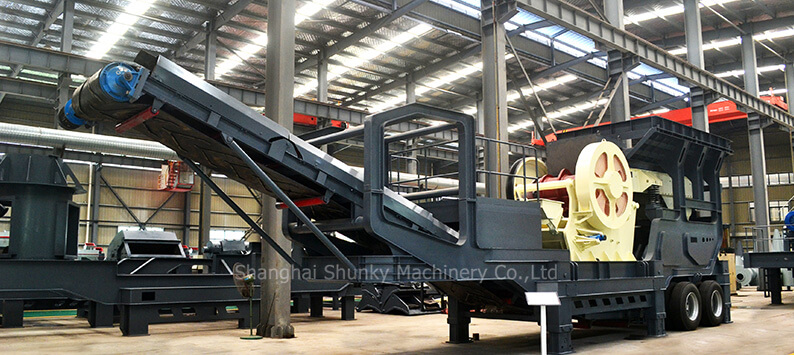

Mobile Jaw Crusher Plant

03Working Principle

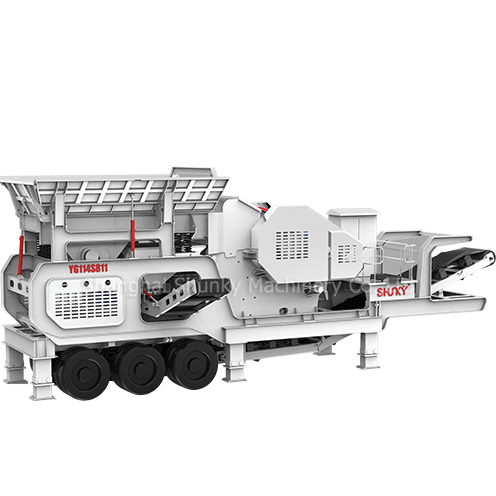

Mobile Jaw Crusher Plant

Mobile jaw crusher plant is one kind of mobile rock crusher. According to the different requirements of different crushing process, Mobile crushing and screening plants can be the following two processes of "crushing first, screening second" or "screening first, crushing second". The mobile stone crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing system and secondary crushing system, while the three-stagesystems includes primary crushing plant, middle crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.

04Technical Parameters

Mobile Jaw Crusher Plant

Model SMC600 SMC750 SMC900 SMC1060 SMC1200 SMC1300PEX
Transport size
Length(mm) 8600 9600 11097 13300 15800 9460
Width(mm) 2520 2520 3759 2900 2900 2743
Height(mm) 3770 3500 3500 4440 4500 3988
Alex weight(kg) 10121 14500 21380 38430 64000 14730
King pin weight(kg) 5118 7500 10890 19450 34000 10490
Jaw crusher
Model PE PE PE PE PE PEX
Feed opening(mm) 400X600 500X750 600X900 750X1060 900X1200 300X1300
Discharging hole setting range(mm) 40-100 50-100 65-180 80-180 95-225 20-90
Capacity(t/h) 15-60 40-110 90-180 110-380 220-450 30-105
Feeder
Feed hopper volume 3 4 7 10 10 3
Hopper width 2200 2500 3000 3000 3000 2200
Model ZSW6520 ZSW8530 ZSW9638 ZSW1142 ZSW1349 ZSW8530
Belt conveyor
Model B650X6 B800X7 B1000X8 B1000X11 B1200X13 B1000X7

05Working Principle

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
