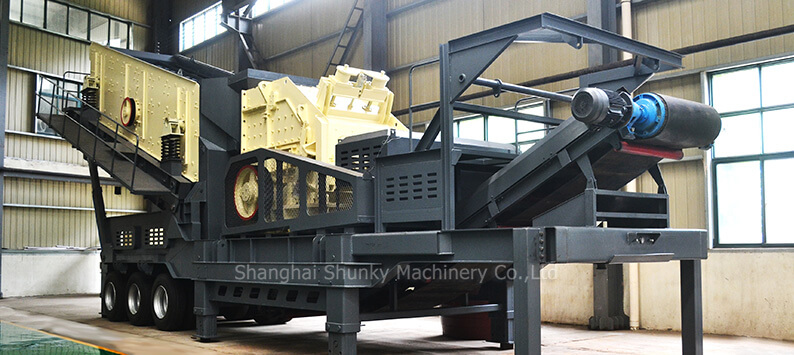

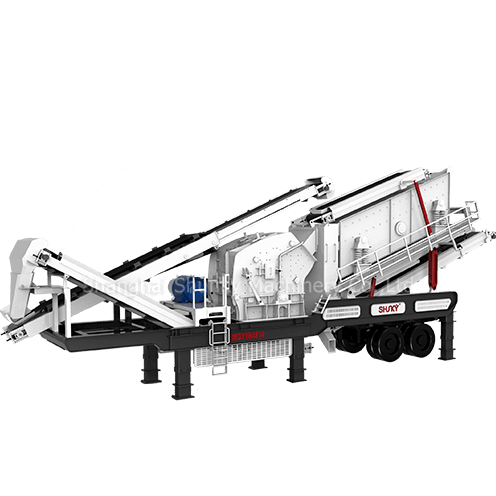

Mobile Impact Crushing Plant

Mobile Impact Crushing Plant is mainly used in hard rock crushing ,aggregate production , outdoor mining crushing,construction waste recycling, cement production and tunnel crushing.

Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

10-180 t/hCapacity 60-300 kwMotor Power

01Product Features

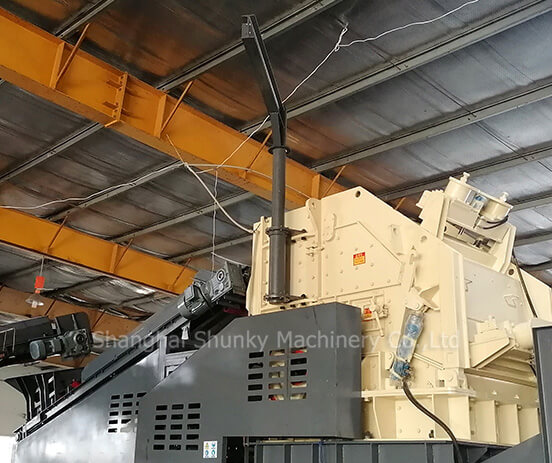

Impact Crusher is the main machine of the Mobile Impact Crusher Plant,it’s ;used as secondary equipment after in the Jaw Crusher. ;Mobile Impact Crusher Plant is mainly used for metallurgy, chemical industry, building materials, water and electricity’s materials processing which often requires to relocate, especially for highways, railways, water and electricity projects mobility stone operation. Users can ask to adopt mufti-configuration modes according to types.

Mobile Impact Crushing Plant
Mobile Impact Crushing Plant
Mobile Impact Crushing Plant


02Product Features

  • It’s professional used for construction waste recycling.

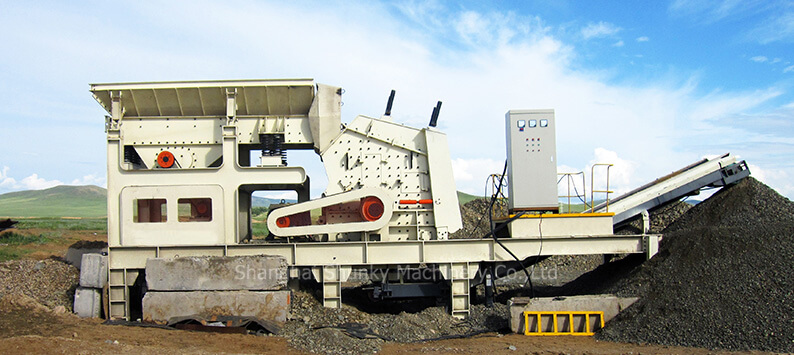

  • It is widely used in mining, coal, tailings, urban infrastructure, roads or construction sites and other sites.

  • It is used to deal with topsoil and a variety of other materials.

    Separation of viscosity of concrete aggregates; Construction and demolition industry; After crushing screening; Quarrying industry.

  • Pebble, rock (limestone, granite, basalt, diabase, andesite, etc.), ore tailings sand and stone chips of artificial system.

Mobile Impact Crushing Plant

03Working Principle

Mobile Impact Crushing Plant

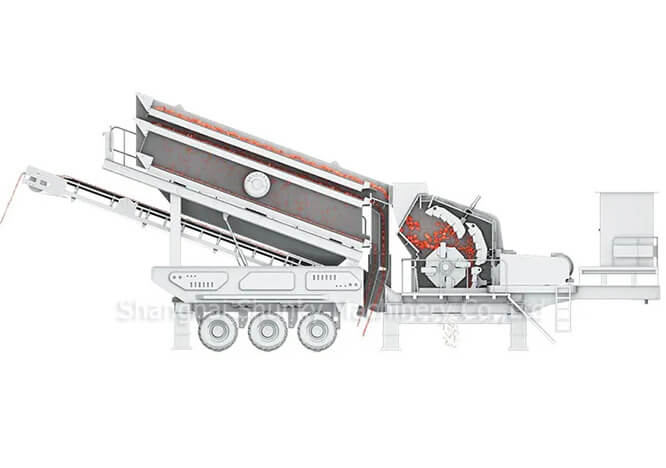

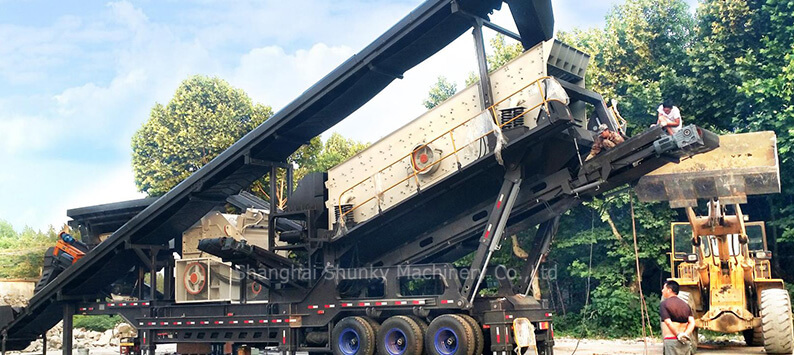

How mobile impact cruhser plant works? In the mining and quarry industry, mobile impact crusher plant is usually as secondary crushing machine to process rocks or ores from priamry jaw crusher plant. After impact crusher machine crushing, precisely shaped cubical end products is feed to vibrating screen to get different size material, 0-5mm, 5-10mm, 10-20mm, 20-40mm or some other required size. Vibrating screen is designed to be same level with impact crusher. The oversized material from first layer could be fed to impact crusher directly to crush again. Other required size is sent to stock ground by belt conveyor. Compared to stationary stone crusher plant, iIt has good mobility and can extend together with the raw materials site or construction site and has many types of combinations to satisfy the processing needs of different materials.

04Technical Parameters

Mobile Impact Crushing Plant

Item Unit MG938F1010 MG938F1210 MG1142F1214 MG1142F1315
Transportation Length mm 10800 11900 13100 13100
Transportation Width mm 2480 2550 2800 2900
Transportation Height mm 3900 3900 4450 4450
Maximum Length mm 11200 12100 13300 13300
Maximum Width mm 2900 2900 2950 2950
Maximum Height mm 4100 4100 5200 5200
Weight t 28 39 44 54
Tire Configuration   Dual-axial Dual-axial Tri-axial Tri-axial
Crusher   PF-1010 PF-1210 PF-1214 PF-1315
Max Feeding Size mm 300 300 300 350
Capacity t/h 70-130 70-130 90-180 120-250
Vibrating Feeder   GZD-960×3800 GZD-960×3800 GZD-1100×4200 GZD-1100×4200
Main Belt Conveyor   B800×8M B800×8.5M B1000×9M B1000×9M
Side-openingBelt Conveyor(Optional)   B450×3M B450×3.2M B500×3.5M B500×3.5M
Power of Generator Set(Optional) KW 200 200 250 330
Iron-separator(Optional)   RCMD(C)-8 RCMD(C)-8 RCMD(C)-10 RCMD(C)-10

05Working Principle

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
