Mobile Sand Making Plant

Mobile sand making plant can be used in pebble,rock( the limestone, granite, basalt, aluminum, andesite, etc.), ore tailings, slags, artificial sand production. It is especially used to process raw material to excellent aggregate and sand for railway.

Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

50-350 t/hCapacity 147-350 kwMotor Power

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

01Product Features

Mobile Sand making machine is portable type VSI crusher and screening plant. It is indispensable machine for artificial sand making. Mobile sand making plant is ideal for tertiary crushing and screening applications in quarrying and mining.

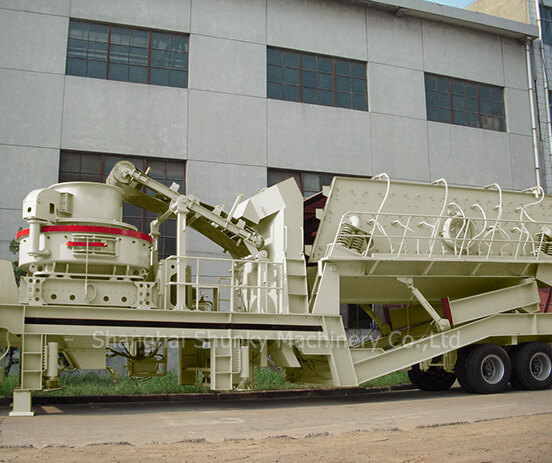

Mobile sand making plant

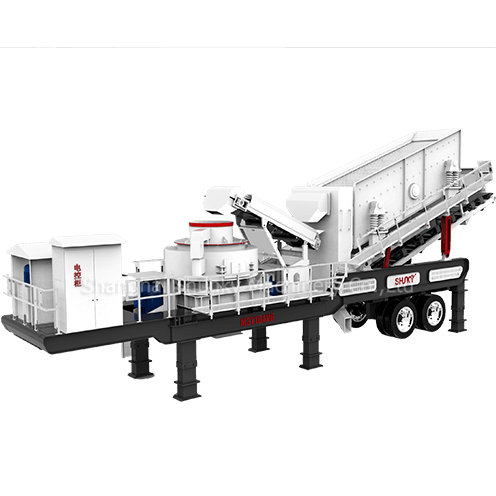

Mobile sand making plant

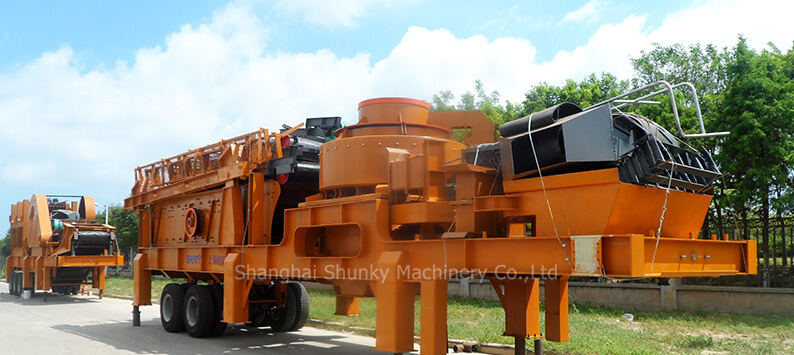

Mobile sand making plant


02Product Features

  • Quality Assurance.

    Powerful crushing performance.

  • Customized Scheme.

    Flexible configuration and great adaptability.

  • High Yield.

    Strong, durable, reliable, large loading capacity.

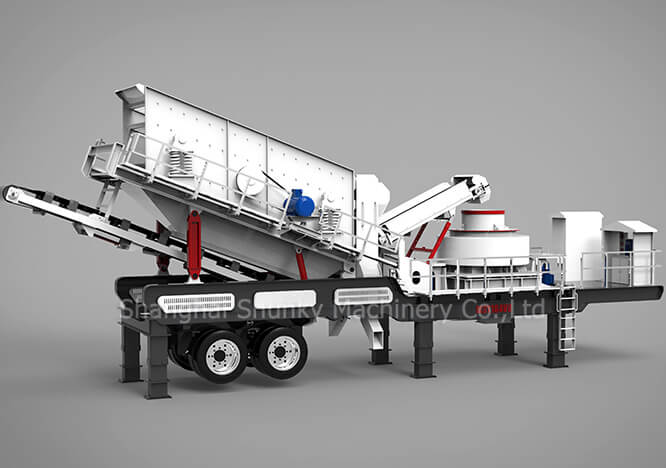

Mobile sand making plant

03Working Principle

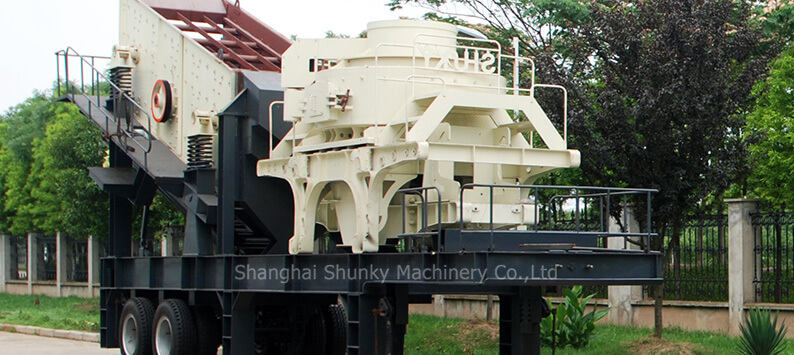

Mobile sand making plant

Mobile sand maker is including hopper, VSI sand maker, vibrating screen , and conveyor belt, truck mounted frame foundation. The power can be electricity or diesel generator set, it reducing the cumbersome process of infrastructure installation and labor consumption, and truly provide customers with convenient, efficient, low-cost crushing equipment. When mobile VIS crushing plant works, the raw material falls through upper inlet into rotating impeller. Due to centrifugal force, the material will collide with surrounding ones and break. The final product will come out from underneath outlet. The screen will control size of final material.

04Technical Parameters

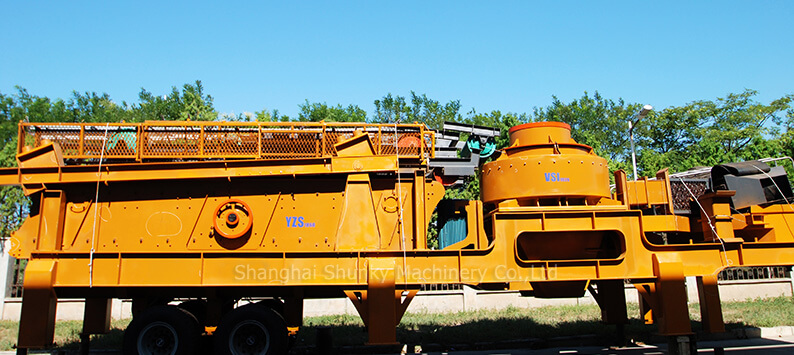

Mobile Sand Making Plant

Model PP5000VSI PP5000VSI3S PP6000VSI PP6000VSI2S PP7000VSI PP7000VSIS
Transport size
Length(mm) 9800 11280 11500 15470 1100 15420
Width(mm) 2490 2780
Height(mm) 4200 2500 3850 4180 3820 4150
Alex weight(kg) 14600 19200 14000 22300 15000 21100
King pin weight(kg) 7000 8800 6000 10300 8200 11500
Vertical shaft impact crusher
Model VI-5000 VI-5000 VI-6000 VI-6000 VI-7000 VI-7000
Max input size(mm) 65(80) 65(80) 70(100)
through-put capacity(t/h) 80-150 80-150 120-250 120-250 180-350 180-350
Vibrating screen
Model 3YK1545 2YK1860 YK2160
Belt conveyor
Model B650X6.5m B800X7.2m B800X6.7m B1000X8.6m B1000X6.4m B1000X8.6m
Alex number 1 2 2 2 2 2

05Working Principle

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
