Crawler Jaw Crushing Station

Crawler jaw crushing station is new type stone crushing equipment. It integrates feeder, stone crusher, screening equipment to effectively solve site infrastructure. Mobile crusher plant is widely used in building, road and bridge construction, urban construction

Applications: Stone crusher is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

10-450 t/hCapacity 30-150kwMotor Power

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

01Product Features

Crawler jaw crushing station is equipped with a high performance mobile jaw crusher, and vehicle-mounted feeder vibrating screen and high-intensity short length, light weight; mobility strong adaptability, reduce material transportation cost flexible combination - Whether crushing, crushing or sand making operations, its design philosophy is to fully adapt to the various mobile crushing circumstances, eliminate broken space, the environment, the customer base configuration crushing obstacles, provide customers with real simple, efficient, low-cost rock crushing equipment, mainly used in metallurgy, chemical industry, building materials, utilities often need to move material processing operations, especially for highways, railways, hydropower engineering and other stone work flow, users can process raw materials according to the type, size and product requirements of different materials using a variety of configurations.

02Product Features

  • PE Series high-performance crusher.

  • Car feeder, vibrating screen, belt conveyor

  • Pulling the steering shaft, to facilitate road transport.

  • Vehicle installation support, on-site installation quick and easy.

  • Supporting the installation of the motor and control box integration.

Crawler jaw crushing station

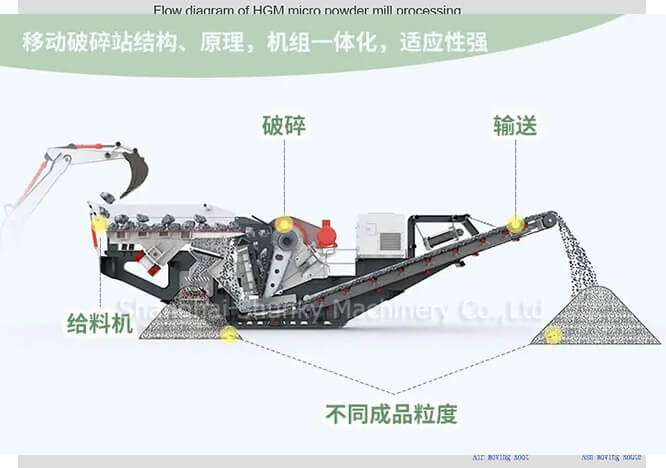

03Working Principle

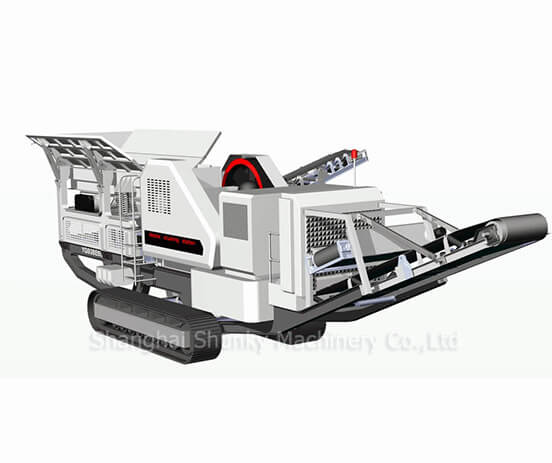

Crawler jaw crushing station

Crawler jaw crushing station is one kind of mobile rock crusher. According to the different requirements of different crushing process, Mobile crushing and screening plants can be the following two processes of "crushing first, screening second" or "screening first, crushing second". The mobile stone crushing plant can be composed of two-stage plants or three-stage plants. The two-stage plants consists primary crushing system and secondary crushing system, while the three-stagesystems includes primary crushing plant, middle crushing plant and tertiary crushing plant, each of which is of high flexibility and can be used individually.

04Technical Parameters

Crawler Jaw Crushing Station

Model SMC600 SMC750 SMC900 SMC1060 SMC1200 SMC1300PEX
Transport size
Length(mm) 8600 9600 11097 13300 15800 9460
Width(mm) 2520 2520 3759 2900 2900 2743
Height(mm) 3770 3500 3500 4440 4500 3988
Alex weight(kg) 10121 14500 21380 38430 64000 14730
King pin weight(kg) 5118 7500 10890 19450 34000 10490
Jaw crusher
Model PE PE PE PE PE PEX
Feed opening(mm) 400X600 500X750 600X900 750X1060 900X1200 300X1300
Discharging hole setting range(mm) 40-100 50-100 65-180 80-180 95-225 20-90
Capacity(t/h) 15-60 40-110 90-180 110-380 220-450 30-105
Feeder
Feed hopper volume 3 4 7 10 10 3
Hopper width 2200 2500 3000 3000 3000 2200
Model ZSW6520 ZSW8530 ZSW9638 ZSW1142 ZSW1349 ZSW8530
Belt conveyor
Model B650X6 B800X7 B1000X8 B1000X11 B1200X13 B1000X7

05Working Principle

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

Crawler Crushing Station

Feed Size:350~425mm

Learn More

Crawler Impact Crushing Station

Capacity:10-180 t/h

Learn More

Mobile Impact Crushing Plant

Capacity:10-180 t/h

Learn More
