Crawler Crushing Station

Crawler crushing station is widely used in mining ore crushing, construction waste recycling, construction aggregate production, highway, railway, road and bridge construction and other industries.

Applications: It is applied to the crushing of various hard rock materials and ore materials, such as granite, basalt, marble shale, sandstone, quartz, limestone, iron ore, copper ore, manganese ore, coal gangue, non-ferrous metal ore, pebble and construction waste of urban demolition.

350~425mmFeed Size 15~110t/hCapacity

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

Crawler crushing station is mainly used to process materials in metallurgy, chemical industry, building construction, hydropower project, etc. which needs to be moved around frequently. It is especially applied in the crushing and screening work of movable materials in highway, railway and hydropower engineering project. Users can adopt a variety of configuration forms according to different kinds of raw material processed, scales, and final products. In recent years, it has made outstanding contributions in the construction wastes recycling engineering. Integrated mobile station reduces the difficulties in building infrastructure for separated components and installing auxiliary facilities. It can save a lot of infrastructure and relocation cost. Besides, it also can conduct crushing work on site and move according to the sites of raw materials, which greatly reduce the transportation cost.

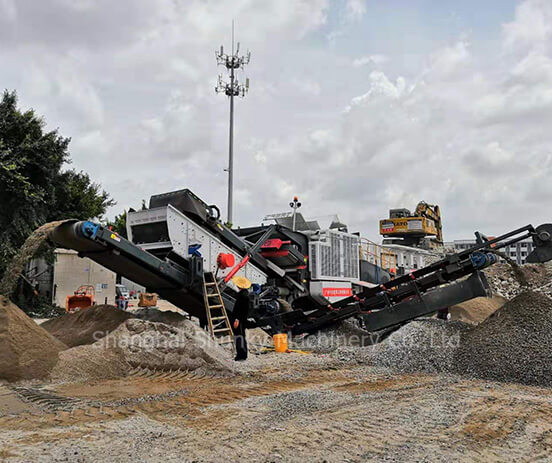

Crawler crushing station

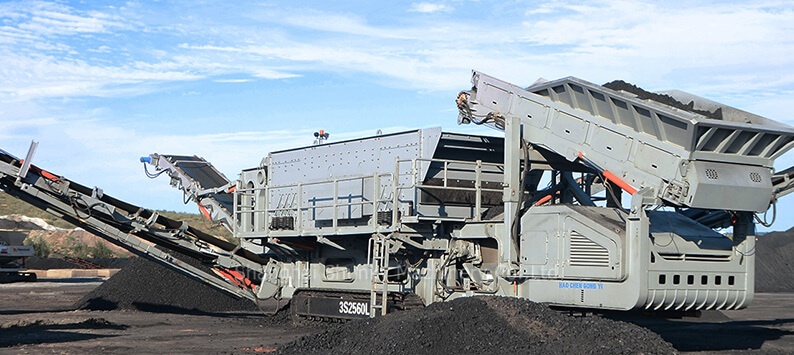

Crawler crushing station

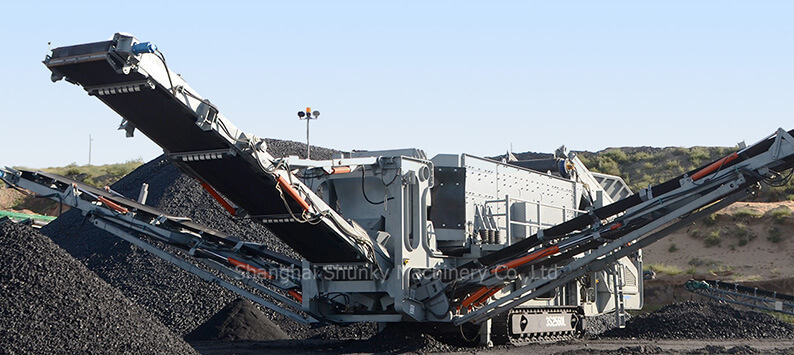

Crawler crushing station


02Product Brief Introduction

  • Dular design makes it flexible and can be combined with other machines freely.

    Wheel-mounted traction, compact structure and stability make mobile crushing station satisfy the demand of mobility no matter at the work site or on the road. Various models can quickly combine with other models to meet the different needs of production.

  • On-site working helps reduce transportation cost.

    The work is conducted by various equipments which can crush the materials on the site. The finished products can meet the needs of customers directly, which reduces the material transportation cost.

  • Strong adaptability and on-demand customization.

    This crushing station is equipped with independent generator. The machine can work normally even there is no local power. At the same time, we can customize mobile crushing plant according to customer's site, quality of materials and shape of products.

  • Compact structure and reliable performance.

    Mobile crushing station integrates the superior vibrating feeder, crushers, vibrating screen, vehicle motor and control box as a whole, which makes the station have compact structure and reliable running.

  • Reasonable bearing structure and fast installation.

    Mobile crushing station can be put into use just after simple processing of supporting parts. It is convenient to disassemble and transport without any residual loss if it need be moved to other places.

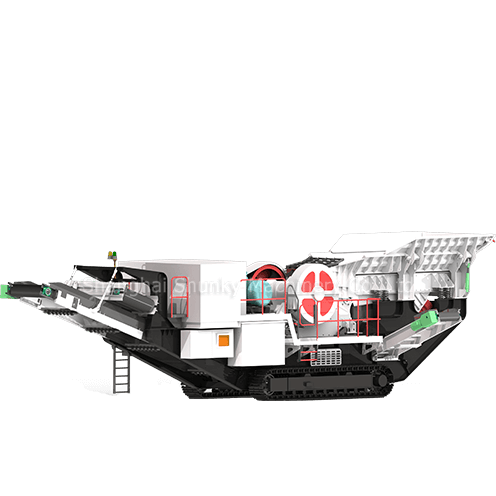

Crawler crushing station

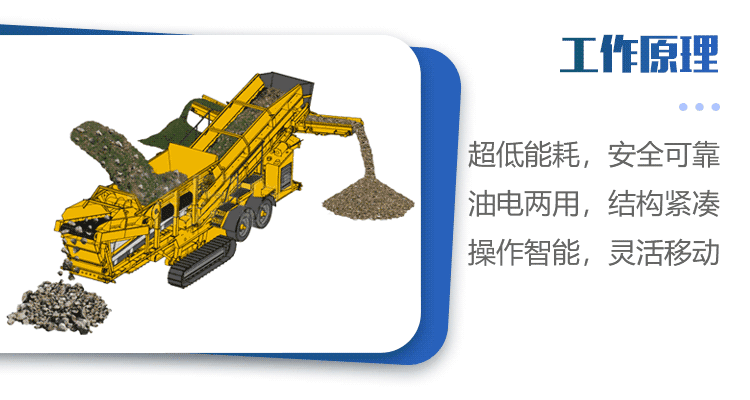

03Working Principle

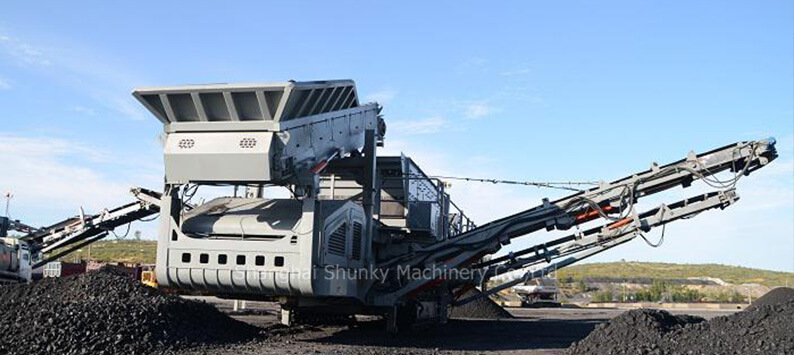

Crawler crushing station

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

04Technical Parameters

Crawler Crushing Station

Item Unit ME46C24 ME57C24
Transportation Length mm 13700 14000
Transportation Width mm 2800 2800
Transportation Height mm 4500 4600
Ma×imum Length mm 14500 14650
Ma×imum Width mm 2800 2800
Ma×imum Height mm 5830 5980
Weight t 38 45
Tire Configuration   Dual-a×ial Dual-a×ial
Vibrating Feeder   GZD960×3800 GZD960×3800
Crusher   PE400×600 PE500×750
Discharging Belt Conveyor   B650 × 6.5M B650 × 6.5M
Belt Conveyor above Vibrating Screen   B650 × 10.5M B650 × 10.5M
Vibrating Screen   3YZS1237 3YZS1237

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
