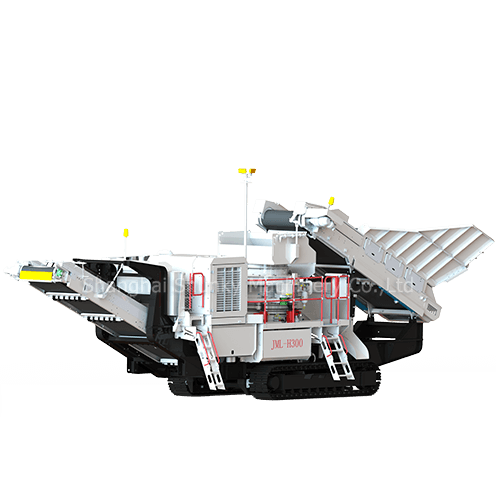

Crawler Cone Crushing Station

Crawler Cone Crushing Station is mainly used in hard rock crushing, aggregate production, mining crushing, construction waste recycling. It provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications.

Applications: Crawler Cone Crushing Station is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

30-600t/hCapacity 90-265kwMotor Power

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

HGM series of three-rings and medium-speed micro powder grinder is a new type of making micro powder machines through more than twenties times research and improvement

02Product Brief Introduction

  • Heavy-type design, endure high workload.

  • More compact structure, large capacity.

  • High performance and movable.

  • It can work independently or forms a multi-stage crushing plant with other machines.

  • Wide assembly parts can be adapted to many applications.

  • Greatly reduce the operating cost, high efficiency, and high broken efficiency.

  • Reliable production and continuous operation.

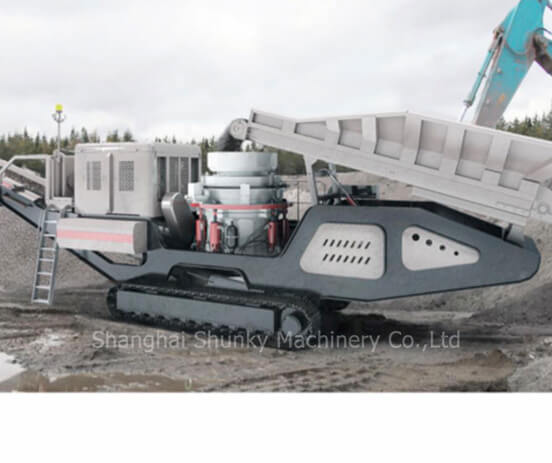

Crawler Cone Crushing Station

03Working Principle

Crawler Cone Crushing Station

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

04Technical Parameters

Crawler Cone Crushing Station

Item Unit M3S1848CS75 M3S1860CS16 M3S1860HP220
Transportation Length mm 14000 16000 16000
Transportation Width mm 3100 3100 3100
Transportation Height mm 4300 4500 4500
Maximum Length mm 14000 16400 16400
Maximum Width mm 3400 3400 3400
Maximum Height mm 4700 4700 4700
Weight t 34.5 49.5 41
Tire Configuration   Dual-axial Dual-axial Tri-axial
Crusher   CS75 CS160 CS220
Belt Converyor under Vibrating Screen   B800×6M B800×7M B800×7M
Vibrating Screen   3YZS1848 3YZS1860 3YZS1860

05Working Principle

+86-13585707741*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

Crawler Crushing Station

Feed Size:350~425mm

Learn More

Wheel Mounted Mobile Crushing Station

Feed Size:350~425mm

Learn More

Mobile Sand Making Plant

Capacity:50-350 t/h

Learn More
