Mobile Cone Crushing Station

Mobile Cone Crushing Station is mainly used in hard rock crushing, aggregate production, mining crushing, construction waste recycling. It provides a new field of business opportunities for contractors, quarry operators, recycling and mining applications.

Applications: Mobile Cone Crushing Station is used for crushing over 120 kinds of rocks, such as limestone, granite, quartz, basalt, river stone, gold ore, iron ore, coal, gravel, aggregate etc. Different final output size could meet your different needs.

30-600t/hCapacity 90-265kwMotor Power

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

01Product Features

The mobile cone crusher station includes cone crusher, vibrating screen, diesel generator, belt conveyor and so on. The capacity from 30-350TPH. It is easy to install and change working site.

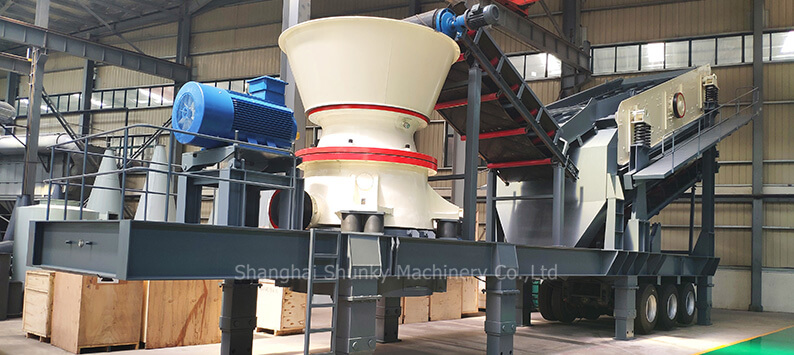

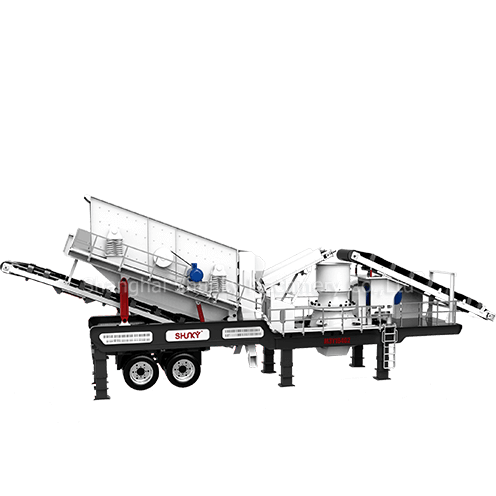

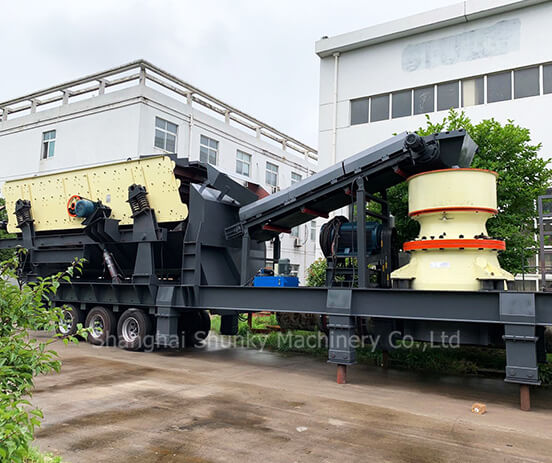

Mobile Cone Crushing Station
Mobile Cone Crushing Station
Mobile Cone Crushing Station


02Product Features

  • Heavy-type design, endure high workload.

  • More compact structure, large capacity.

  • High performance and movable.

  • It can work independently or forms a multi-stage crushing plant with other machines.

  • Wide assembly parts can be adapted to many applications.

  • Greatly reduce the operating cost, high efficiency, and high broken efficiency.

  • Reliable production and continuous operation.

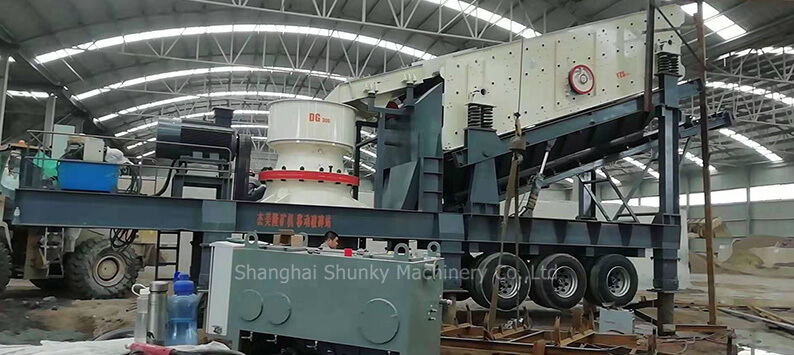

Mobile Cone Crushing Station

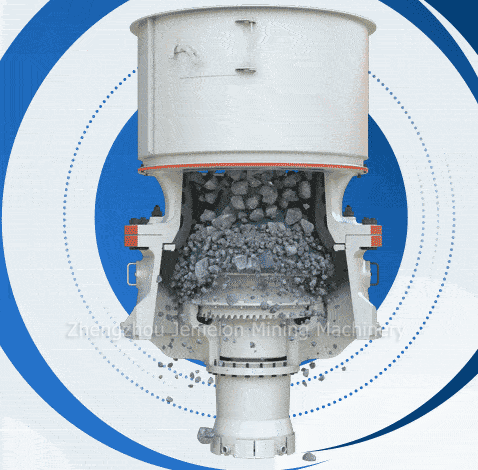

03Working Principle

Mobile Cone Crushing Station

The motor drives movable jaw assembly do reciprocating motion according to the desired trajectory under the action of belt and pulley. The angle between toggle plate and movable jaw increases when movable jaw moves up and the movable jaw closes to the fixed jaw. The materials are crushed in this process. The angle between toggle plate and movable jaw decreases when movable jaw moves down and movable jaw moves away from fixed jaw under the action of the tension rod and spring, then products after being crushed are discharged from the discharge opening.

04Technical Parameters

Mobile Cone Crushing Station

Item Unit M3S1848CS75 M3S1860CS16 M3S1860HP220
Transportation Length mm 14000 16000 16000
Transportation Width mm 3100 3100 3100
Transportation Height mm 4300 4500 4500
Maximum Length mm 14000 16400 16400
Maximum Width mm 3400 3400 3400
Maximum Height mm 4700 4700 4700
Weight t 34.5 49.5 41
Tire Configuration   Dual-axial Dual-axial Tri-axial
Crusher   CS75 CS160 CS220
Belt Converyor under Vibrating Screen   B800×6M B800×7M B800×7M
Vibrating Screen   3YZS1848 3YZS1860 3YZS1860

05Working Principle

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time
