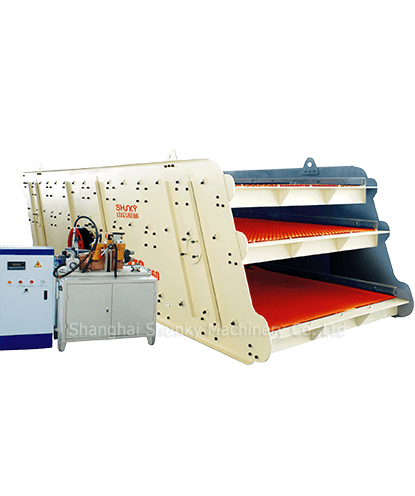

YZS Series Circular Vibrating Screen

YZS series vibrating screen suitable for mining, building materials, road and railway, energy, chemical industry and other industries, which is the ideal equipment in the crushing and screening line.

Applications: Various aggregates and mineral product' s screening

10-1200T/HCapacity 3-150mmFeed Size

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

01Product Brief Introduction

YZS circle vibrating screen is a kind of high efficient new screening equipment. Because of its trajectory approximate to round, it is called circle vibrating screen. YZS circle vibrating screen is highly praised by customers from all trades because its consumption energy is up to national standard which is of advanced level at home and abroad. YZS Circular Vibrating Screen adopts eccentric shaft vibration exciter and partial block helps to adjust amplitude. The advanced frame structure increase the life of equipment and decrease the impact force of the base. It is a multi-level and high efficiency vibrating screen. This kind of screen is of long streamline, many specifications and clear screening for different specification. It features credible structure, strong exciting force, high screening efficiency, low vibrating noise, convenient maintenance, safe operation, etc.

YZS Series Circular Vibrating Screen
YZS Series Circular Vibrating Screen
YZS Series Circular Vibrating Screen


02Product Brief Introduction

  • adopts new structure and advanced technology, so it owns high screening efficiency.

  • adopts eccentric shaft vibration exciter and partial block helps to adjust amplitude .besides, it is easy to maintain, low-consumption, long service-life, low-noise.

  • It adopts punching sieve and has long life span.Replace different mesh size and can get different size of products.

  • It adopts tire clutch with capacity of flexible connection and stable operation.

  • Oil lubrication assures the bearing’s lubrication is at its best, which have the bearing over-heat protective function and make the main bearing keep in a constant temperature and have a long performance life.

YZS Series Circular Vibrating Screen

03Working Principle

YZS Series Circular Vibrating Screen

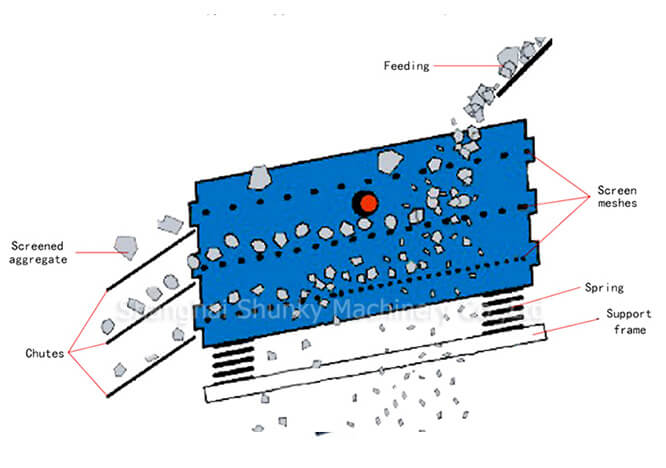

YZS series circular vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device. Its vibrating track is a circle and moves on a circular motion. It is a multi-layer and high efficient vibrating screen. Motor drives the V-belt to make the eccentric block rotate in high speed, so that producing large centrifugal force to make exciter produce the amplitude in circular motion, the stone aggregates on the screen surface will be throwing motion continuously under the function of exciter, during the process of materials contacting with the screen surface, final products will be classified.

04Technical Parameters

YZS Series Circular Vibrating Screen

Model

Screen

Size(mm)

Layer

Max.Feeding

Size(mm)

Capacity

(t/h)

Motor

Power

(kw)

Vibrating

Frequency

(r/min)

Double

Swing

(mm)

2YZS-1237 3700×1200 2 300 25-120 11 870 5-9
3YZS-1237 3700×1200 3 300 25-120 11 870 5-9
2YZS-1548 4800×1500 2 300 30-275 15 870 5-9
3YZS-1548 4800×1500 3 300 30-275 15 870 5-9
4YZS-1548 4800×1500 4 300 30-275 15 870 5-9
2YZS-1848 4800×1800 2 350 56-330 18.5 870 5-9
3YZS-1848 4800×1800 3 350 56-330 18.5 870 5-9
4YZS-1848 4800×1800 4 350 56-330 18.5 870 5-9
2YZS-1860 6000×1800 2 350 65-586 22 870 5-9
3YZS-1860 6000×1800 3 350 65-586 22-30 870 5-9
4YZS-1860 6000×1800 4 350 65-586 22-30 870 5-9
2YZS-2160 6000×2100 2 350 81-720 37 730 5-9
3YZS-2160 6000×2100 3 350 81-720 30-37 730 5-9
4YZS-2160 6000×2100 4 350 81-720 30-37 730 5-9
2YZS-2460 6000×2400 2 350 100-810 37 770 5-9
3YZS-2460 6000×2400 3 350 100-810 37 770 5-9
4YZS-2460 6000×2400 4 350 100-810 37 770 5-9
2YZS-2675 7500×2600 2 350 180-1080 45 770 5-9
3YZS-2675 7500×2600 3 350 180-1080 45 770 5-9
2YZS-3080 8000×3000 2 350 260-1250 45 770 5-9
3YZS-3080 8000×3000 3 350 260-1250 37*2 770 5-9

05Working Principle

+86-13598805827*24-hourWhatsapp/Wechat

Request a Quotation

Note: the above is the display of finished materials, which can be used for crushing more than 200 kinds of materials at the same time

06There are a wide range of crushers to meet your various needs

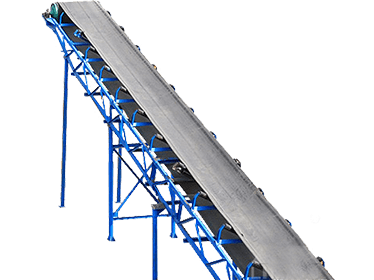

Belt Conveyor

Capacity:20-500 t/h

Learn More

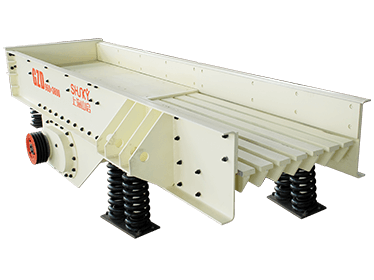

GZD Series Vibrating Feeder
